# Correct a power spectrum by the instrument beam with healpy

healpy
cosmology
Published

April 27, 2021

If you are analyzing a map from an instrument with a specific beam width, you can correct the power spectrum by the smoothing factor caused by that beam and obtain a better approximation of the power spectrum of the orignal sky.

import healpy as hp
import numpy as np
import astropy.units as u
hp.disable_warnings()
m, h = hp.read_map(
"https://portal.nersc.gov/project/cmb/so_pysm_models_data/equatorial/dust_T_ns512.fits", h=True
)

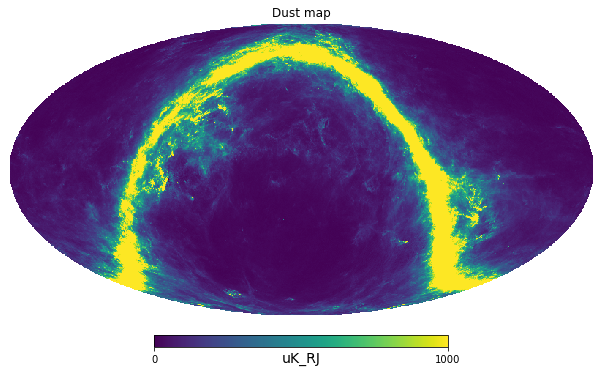

hp.mollview(m, min=0, max=1000, title="Dust map", unit="uK_RJ")

cl = hp.anafast(m)

In this case we assume that the dust map from PySM is the true sky, then we apply a smoothing caused by the beam

beam = 30 * u.arcmin
m_smoothed = hp.smoothing(m, fwhm=beam.to_value(u.radian))
cl_smoothed = hp.anafast(m_smoothed)

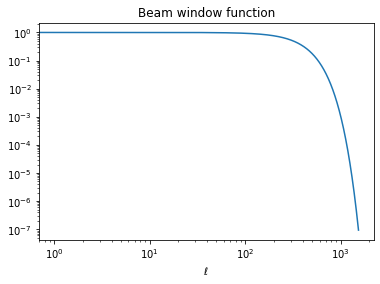

We can get the transfer function of the beam, generally referred as $$B_\ell$$:

bl = hp.gauss_beam(fwhm=beam.to_value(u.radian), lmax=len(cl)-1)
import matplotlib.pyplot as plt
plt.loglog(bl)
plt.title("Beam window function")
plt.xlabel("$\ell$");

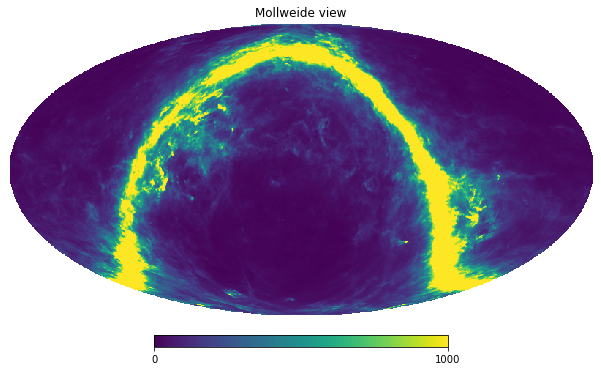

hp.mollview(m_smoothed, min=0, max=1000)

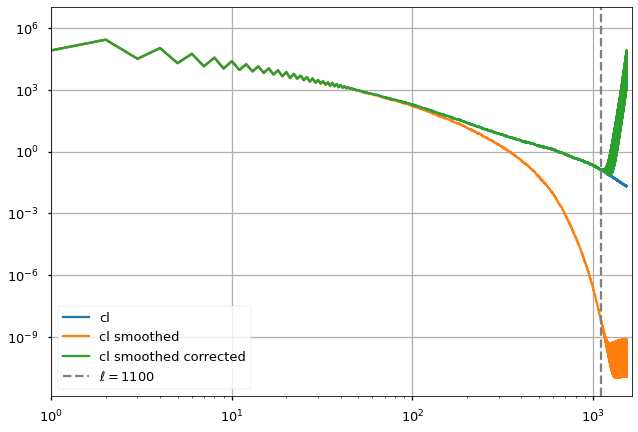

We can recover the input $$C_\ell$$ as $C_^{input} =$:

plt.style.use("seaborn-talk")
plt.loglog(cl, label="cl")
plt.plot(cl_smoothed, label="cl smoothed")
plt.plot(cl_smoothed/bl**2, label="cl smoothed corrected")
plt.xlim(1, len(cl)+100)
plt.axvline(1100, color="gray", ls="--", label="$\ell=1100$");
plt.legend()
plt.grid();

However, once the smoothed $$C_\ell$$ reach machine precision, there is no more signal left, the beam deconvolution then causes extra noise. We need to limit our analysis to a range of $$\ell$$ before the numerical error dominates, in this case for example, $$\ell=1100$$.
